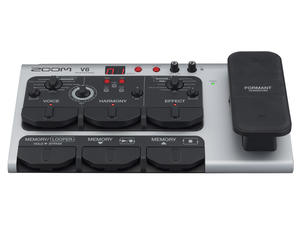

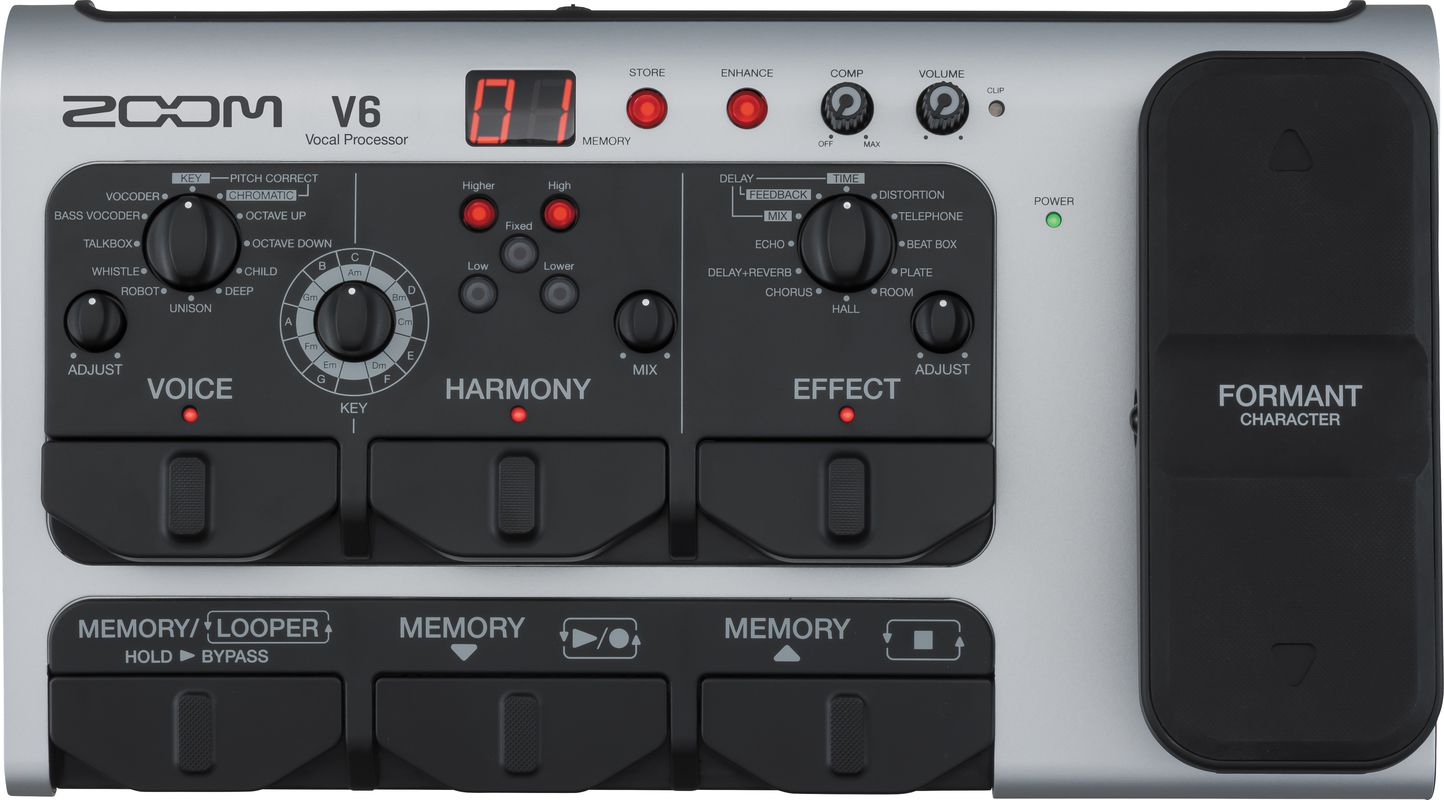

ZOOM V6 Vocal Processor

Available at :

  • V6 offers over 10 studio-grade effects
  • Simultaneously use up to three vocal processors from the Voice, Harmony and Effect sections
  • Formant Shift pedal for adjusting your vocal character in real time
  • Looper for recording up to 3:30.
  • 40 preset patches created by professional vocalists and audio engineers
  • 100 memory locations for storing user-created patches
  • Built-in compressor for optimizing input signal levels
  • Built-in Enhancer for optimizing input signal frequencies via equalization and de-essing
  • USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
  • USB port for firmware updates, power and audio recording
  • Line output for connecting to external mixing consoles
  • Headphone output with dedicated volume control
  • Runs for 3.5 hours on four AA batteries
  • Included AC adapter
  • Optional expression pedal offers advanced control over effects parameters

SPECS

V6 VOCAL PROCESSOR
Voice Section:

12 types
Effect Section:

10 Types
HARMONY section:

5 Types
Number of patch memories:

100
Sampling frequency:

44.1 kHz
A/D conversion:

24-bit 128× oversampling
D/A conversion:

24-bit 128× oversampling
Signal processing:

32-bit
Frequency response:

20 Hz–20 kHz (+1 dB/-3 dB) (200 kO load)
Display:

2-digit 7-segment LED
INPUT

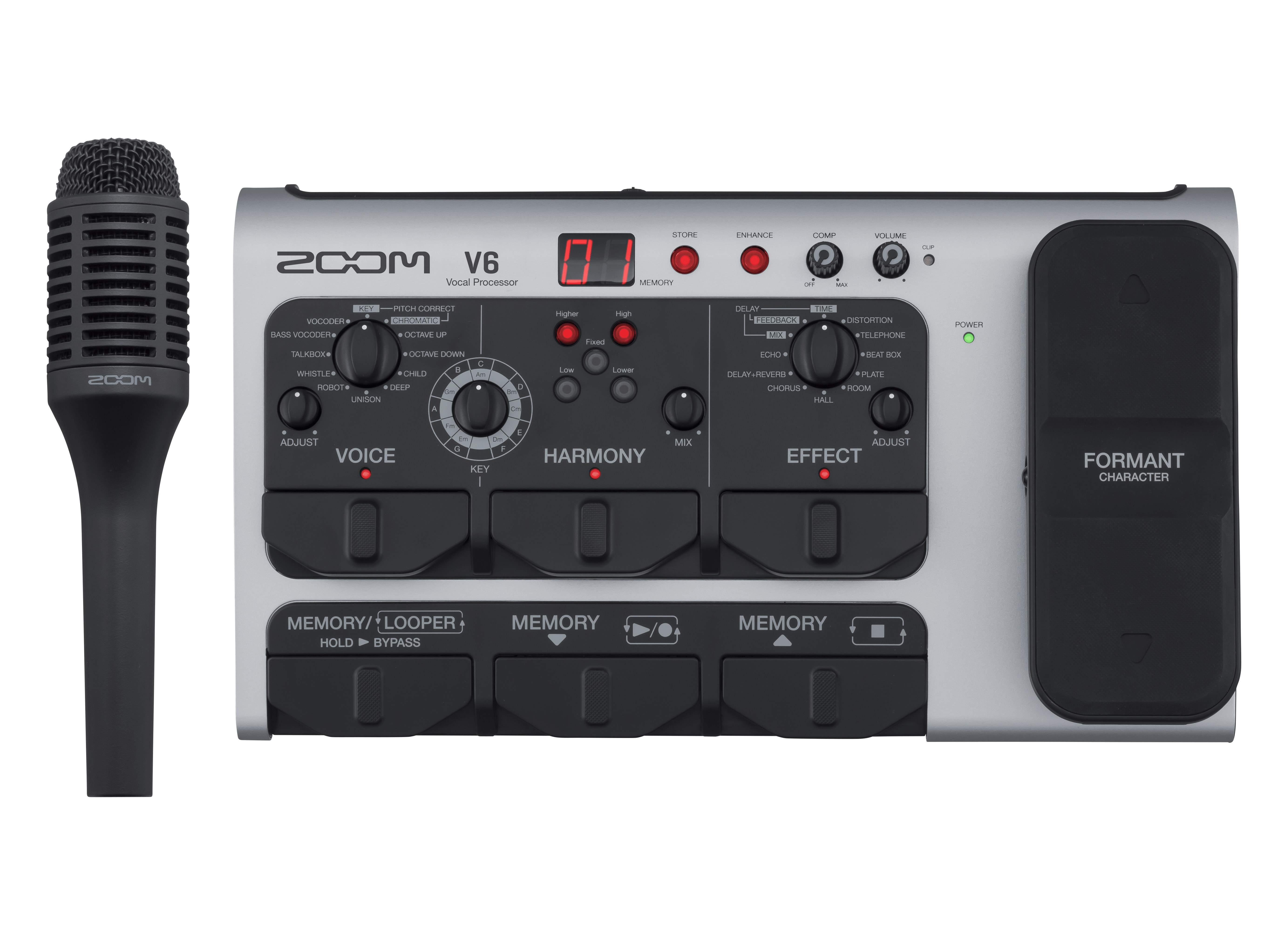

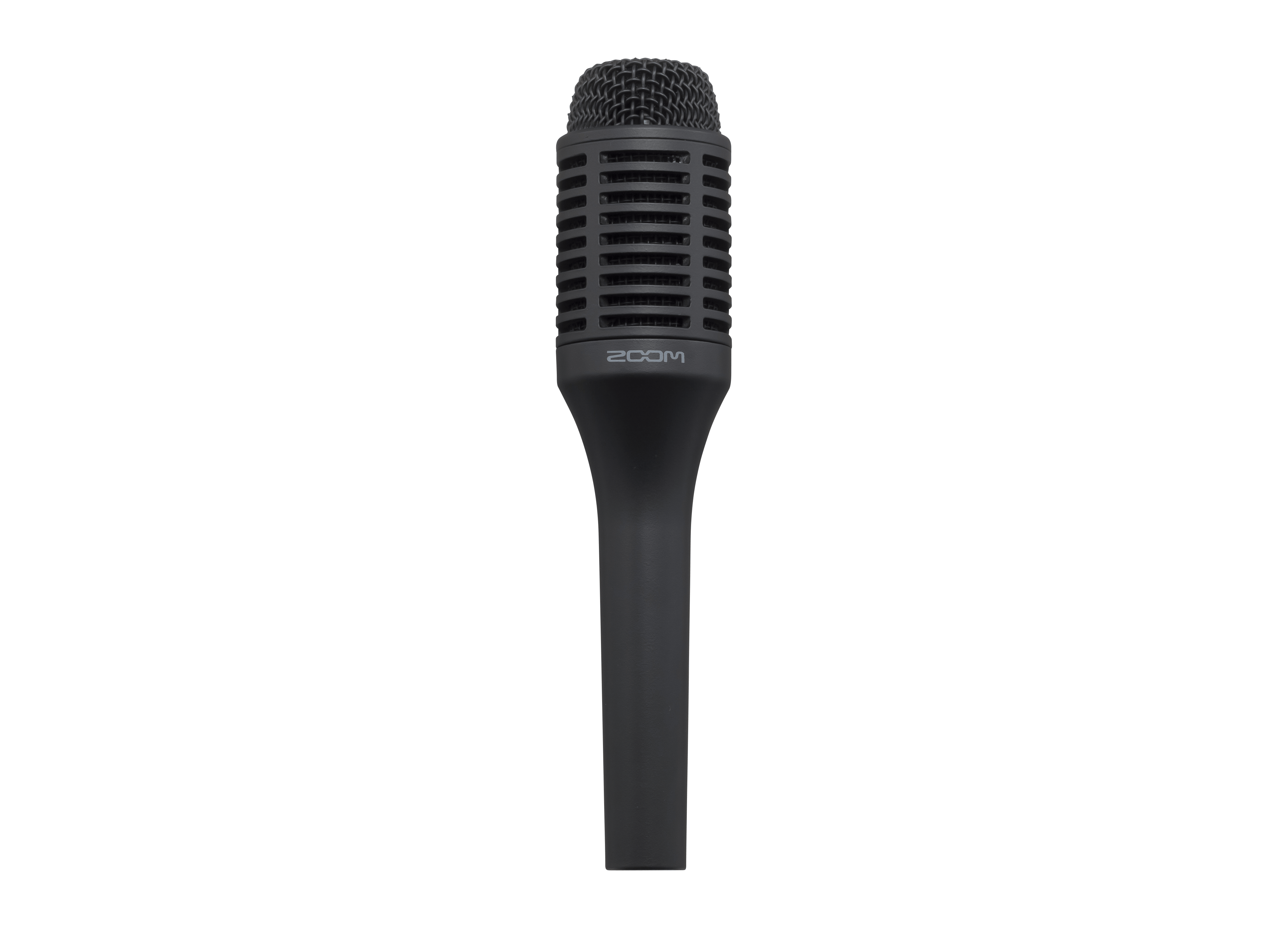

SGV-6:

Directionality: Super cardioid (3 directional mic units)
Sensitivity: –46 dB/Pa at 1 kHz (each mic unit)
Maximum sound pressure input: 140 dBSPL

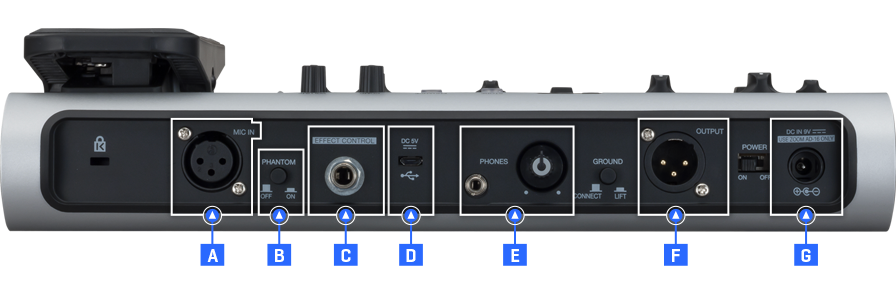

MIC IN:

XLR jack
Input gain: +3 – +40 dB
Maximum input level: +4 dBu
Input impedance: 3 kO or higher (1 kHz)
Phantom power: +48 V
OUTPUTS
OUTPUT:

XLR jack
Maximum output level: +8 dBu
Output impedance: 50 O (HOT-GND, COLD-GND, 1 kHz)
100 O (HOT-COLD , 1 kHz)
GROUND LIFT (switchable)
PHONES:

Stereo mini jack
Maximum output level:
20 mW + 20 mW (into 32 O load)

Equivalent input noise (when phantom power off):

–125 dBu or less (A-weighted, 150 O input, +40 dBu input gain
Noise floor (residual noise):

–75 dBu
Control input:

FP02 input
Power:

AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16)
4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB:

Connector: Micro USB
Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
• Power can also be supplied through the USB port.
• When using a cable designed only for power, other USB functions cannot be used.
External dimensions:

181 mm (D) × 320 mm (W) × 77 mm (H)
Weight:

1.56 kg (excluding batteries)

Packed with professional vocal effects, built-in looper, and our new Formant Pedal, no matter what style you sing the V6 will take your music to the next level.
