Introduction:

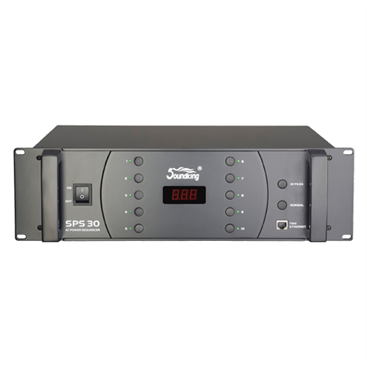

SPS30 power sequencer adopts industrial SCM control, and the TMS telecommunication port uses industrial ARM from TI as the key part. The built-in filters offer pure power supply.
Features
> 30A industrial input connector
> Multifunction power socket
> One key to turn on the sequence function
> Turn on in turn and turn off conversely
> Each channel turns on/off independently
> Input voltage display
> Network control port
> 3U height for rack mounting
> 10 channel outputs; channel status display on the front panel
| Model | SPS30 |
| Rated output current | 30A |
| Max current out per CH | 20A and 13A |
| Power supply control | 10 channel |
| Delay | 2 seconds |
| Dimension | 133x483x360(mm) |
| Weight | 11kg |
-
