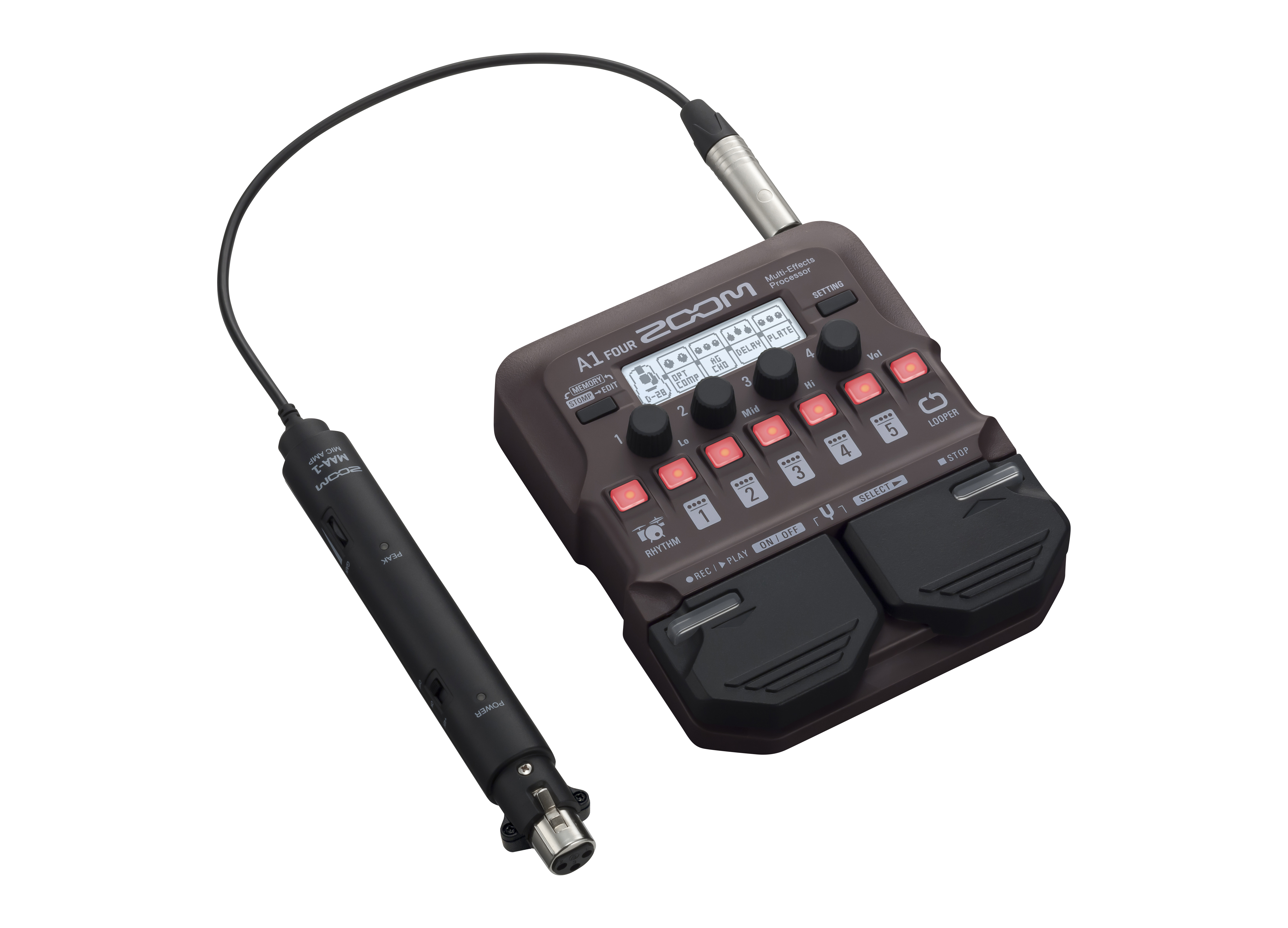

Zoom A1 FOUR/A1X FOUR FOR ACOUSTIC GUITAR, SAXOPHONE, TRUMPET, VIOLIN, HARMONICA, ACOUSTIC BASS, AND MORE

Available at :

FEATURES

A1 FOUR offers over 80 built-in effects / A1X FOUR offers over 90 built-in effects
Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
Up to 5 effects can be used simultaneously, chained together in any order
50 memory locations for storing user-created patches
Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
ZOOM Guitar Lab software for creating, editing and managing effects and patches
68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
Output jack for connection to amp or headphones
A1 FOUR and A1X FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
USB port for firmware updates, power and connection to ZOOM Guitar Lab

*Manufacturer names and product names mentioned in this presentation are trademarks or registered trademarks of their respective owners and do not indicate any affiliation with ZOOM CORPORATION. All product and artist names are intended only to illustrate sonic characteristics that were used as reference in the development of this product.

SPECS

A1 FOUR/A1X FOUR

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS	5
USER PATCHES	50
SAMPLING FREQUENCY	44.1 kHz
A/D CONVERSION	24-bit, 128× oversampling
D/A CONVERSION	24-bit, 128× oversampling
SIGNAL PROCESSING	32-bit
DISPLAY	128x32 dot matrix LCD

INPUT

INPUT	Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 470 k?
AUX IN	Stereo mini jack Rated input level: -10 dBuInput impedance (line): 1k?

OUTPUT

OUTPUT	Standard stereo phone jack (combined line/headphone) Maximum output level: Line +2 dBu (10 k? or more output impedance)Headphones 17 mW + 17 mW (32? load)
INPUT S/N	120dB
NOISE FLOOR (RESIDUAL NOISE)	-97 dBu
POWER	AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB	USB MIDI, USB Micro-B Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONS	A1 FOUR Height: 156 mm (D) × 130 mm (W) × 42 mm (H)Weight: 340 g (excluding batteries)A1X FOUR Height: 156 mm (D) × 216 mm (W) × 52 mm (H)Weight: 610 g (excluding batteries)

MAA-1

INPUT	INPUT XLR balanced input (2: hot) Input gain: +3 – +30 dBInput impedance: 10 k?Maximum input level: +4 dBu+48V phantom power
OUTPUT	Standard mono phone jack Nominal output level: ?20 dBuMaximum output level: +7 dBuOutput impedance: 1 k?
POWER	2 AA batteries Continuous operation time (when phantom current is 3 mA) About 15 hours (using alkaline batteries)?About 15 hours (using nickel metal hydride batteries)
EXTERNAL DIMENSIONS	Height: 177 mm (D) × 23 mm (W) × 25 mm (H) Weight : 70 g (excluding batteries) 0 dBu = 0.775 V

Popular effects such as Distortion, Chorus and Wah are typically designed to work with the electric guitar. The A1/A1X FOUR provide all-new effects that are engineered to process the unique signals generated by acoustic instruments.
