| NUMBER OF INPUT CHANNELS | Mono (MIC/GUITAR) | 1 |
| Stereo (LINE IN) | 1 | |
| NUMBER OF OUTPUT CHANNELS | Stereo (TRS) | 1 |
| Stereo (PHONES) | 1 |
| MIC/GUITAR | Type | XLR/TRS combo jack |
| (XLR: 2 HOT, TRS: TIP HOT) | ||
| Input Gain | +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR) | |
| Input impedance | XLR: 2 k? (MIC) | |
| TS: 1 M? (GUITAR) | ||
| Maximum input level | XLR: +0.6 dBu (MIC) | |
| TS: +11 dBu (GUITAR) | ||
| Phantom power | +48 V | |

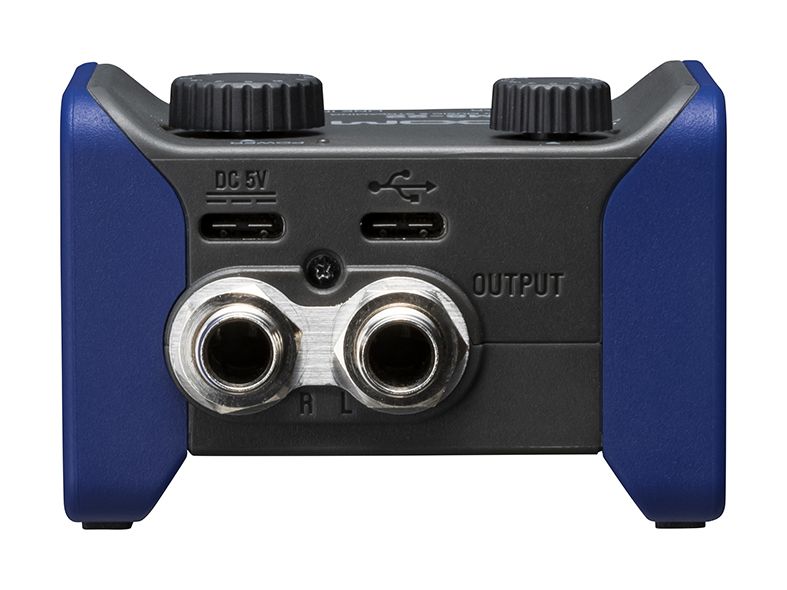

| OUTPUT (STANDARD PHONE JACKS) | Type | TRS phone jacks (impedance balanced) |
| Maximum output level | ?2 dBu (at 0 dBFS) | |
| Output impedance | 100 ? | |
| OUTPUT (HEADPHONE JACK) | Type | 3.5mm stereo mini jack |
| 20 mW + 20 mW (32 ? load) | ||
| Output impedance | 10 ? | |
| USB | USB Type-C (audio interface function) | |
| • Use a USB cable that supports data transfer. USB bus power is supported. | ||
| DC 5V | USB Type-C (for power supply) | |
| LINE IN | Type | 3.5mm stereo mini jack |
| Input impedance | 20 k? | |
| Maximum input level | +1.5 dBu |
| 44.1 kHz: +0/?2 dB (20 Hz – 20 kHz) | |
| 96 kHz: +0/?3 dB (20 Hz – 40 kHz) |
| –120 dBu or less (IHF-A) at +54dB/150? input |
| INPUT AND OUTPUT CHANNELS | Recording: 2 channels | |
| Playback: 2 channels | ||
| SAMPLING FREQUENCIES | 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz | |
| BIT DEPTH | 24-bit | |
| INTERFACE | USB 2.0 | |
| CLASS | USB Audio Class 2.0 |
| AC adapter (ZOOM AD-17): DC 5 V/1A | |
| • USB bus power is supported. |
| USB bus power / DC 5 V power supply: 170 mA |
| 1.8 W maximum |
| 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H) |
| 85 g | |
| Note: 0 dBu = 0.775 Vrms |

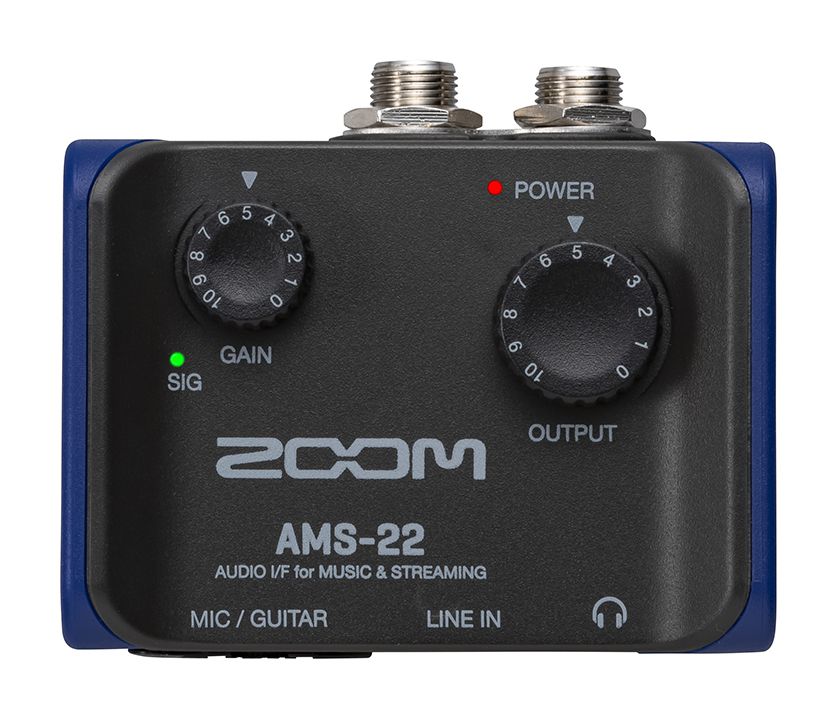

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.
