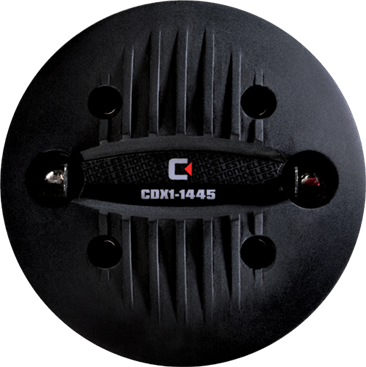

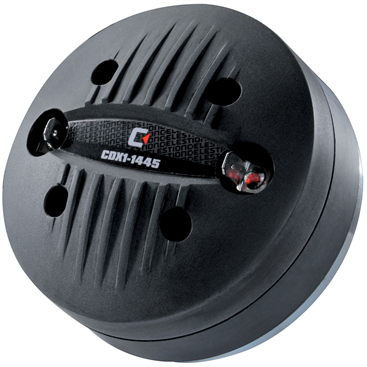

* 1" exit lightweight and compact ferrite magnet compression driver with
* 1.4" copper clad aluminium voice coil
* 20Wrms power handling (AES standard) and 106dB sensitivity
* One piece PETP diaphragm and surround
* Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
* Suitable for 2-way and 3-way systems
8O Frequency Response
1. Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
2. Measured on axis at 1W, 1m, using typical horn, in 2p anechoic environment.
General
* Power rating (1) 120Wrms
* Nominal impedance 8/16 Ohm
* Frequency range 1500-20,000Hz
* Sensitivity (2) 106dB
* Recommended min. crossover (12dB/oct) 2200Hz
* Voice coil diameter 35mm/1.4in
* Voice coil material Copper clad aluminium
* Magnet type Ferrite
* Diaphragm material PETP film
* Surround material PETP film
Mounting Information
* Overall width 90mm/3.54in
* Overall depth 46.5mm/1.83in
* Fitting Flange (4 x M6 holes on 76mm/3in PCD)
* Throat exit 25mm/1in
* Unit weight 1kg/2.2lb
Packed Dimensions & Weight
* Multi pack (8) size W x D x H 500mm x 485mm x 110mm
............................................./19.7in x 19.1in x 4.3in
* Multi pack (8) weight 8.8kg/19.4lb
#
